- Battery 6S 1300–1500mAh
- Motors 1920–1960kv (or higher, you crazy devil)
- FC / ESC KISS ULTRA V2+ w/ Voltara ESC
- VTX Your choice
Specifications
170.0g
Weight
5.1"
Prop Size
165x163mm
Wheelbase
5.0mm
Arm Thickness
3.0mm
Plate Thickness
28.0mm
Cage Height
Full Technical Details
| Spec | Detail |
|---|---|
| Weight | ~170g |
| Height (Stack/VTX Spacing) | 20mm |
| Arm Length (Total) | 142mm |
| Prop Size (MAX) | 5.1" / 129.54mm |
| Stack Mounting | 20x20mm / 30x30mm |
| VTX Mounting | 20x20mm / 25x25mm |
| Top Plate | 3mm |
| Mid Plate | 3mm |
| Arms | 5mm |
| Bottom Plate | 3mm |
| Standoffs | 5x20mm |
| Cage Height | 28mm |
| Wheelbase | 165x163mm |
| Length | 135mm |
Scroll →

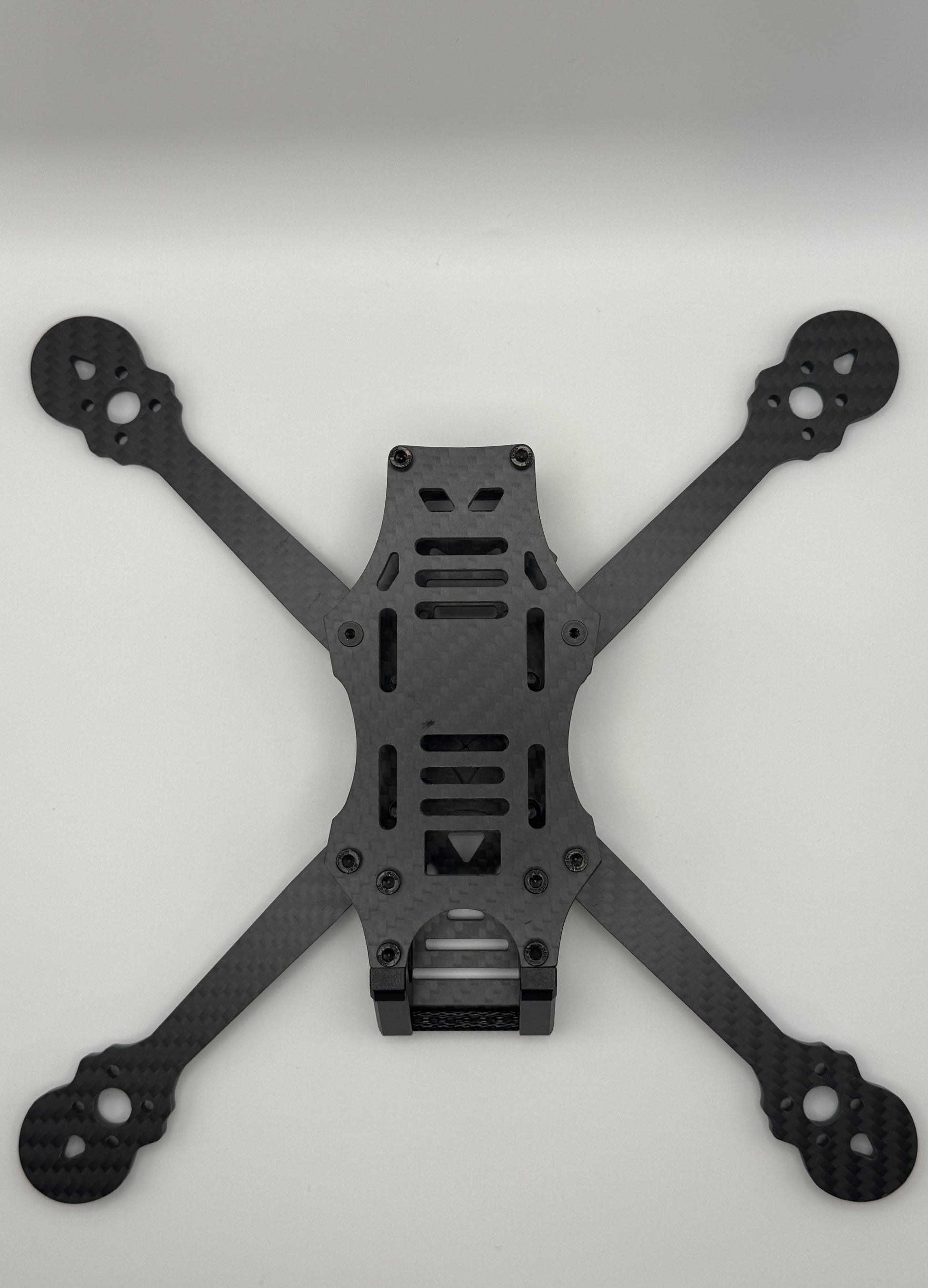

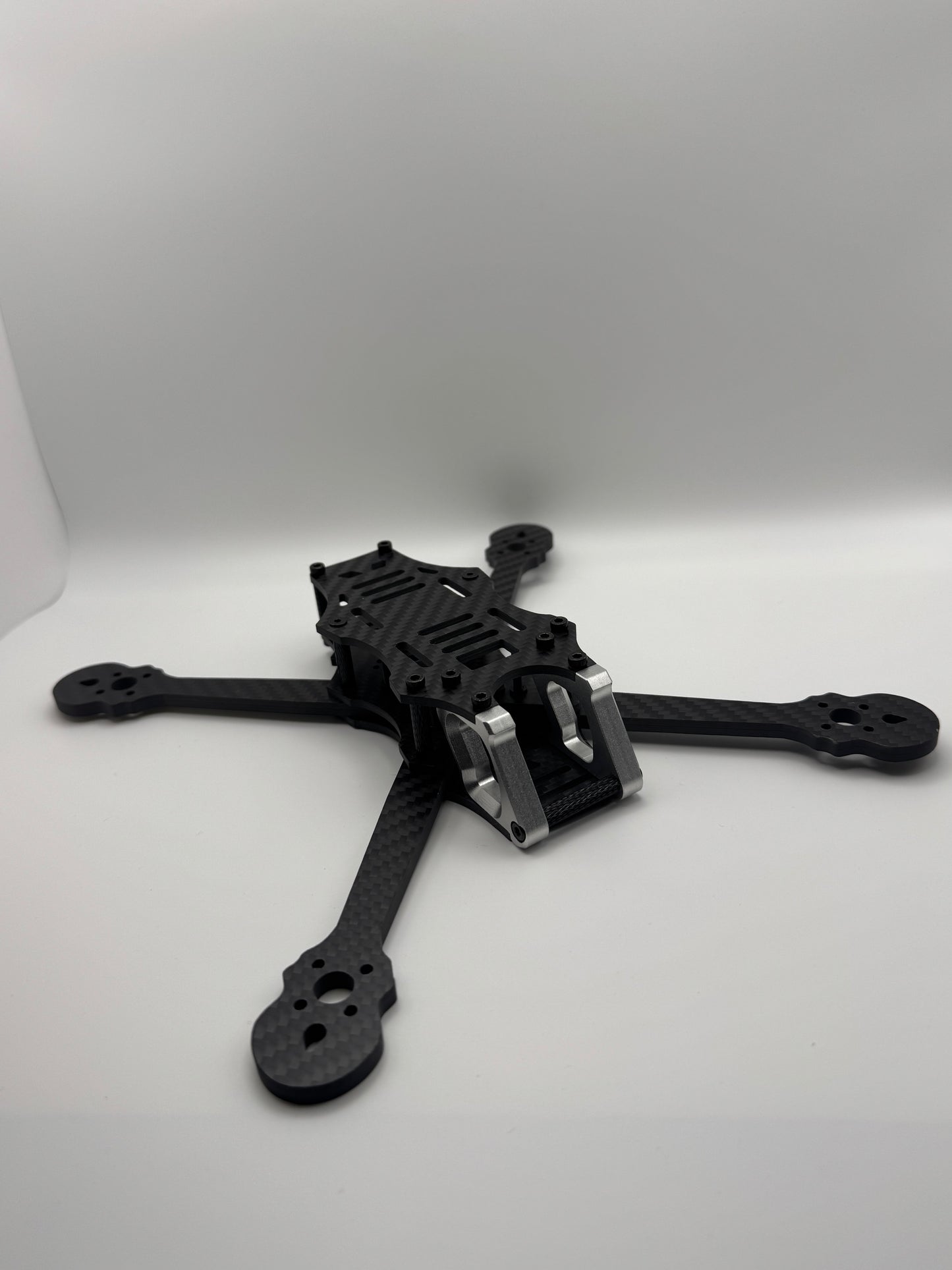

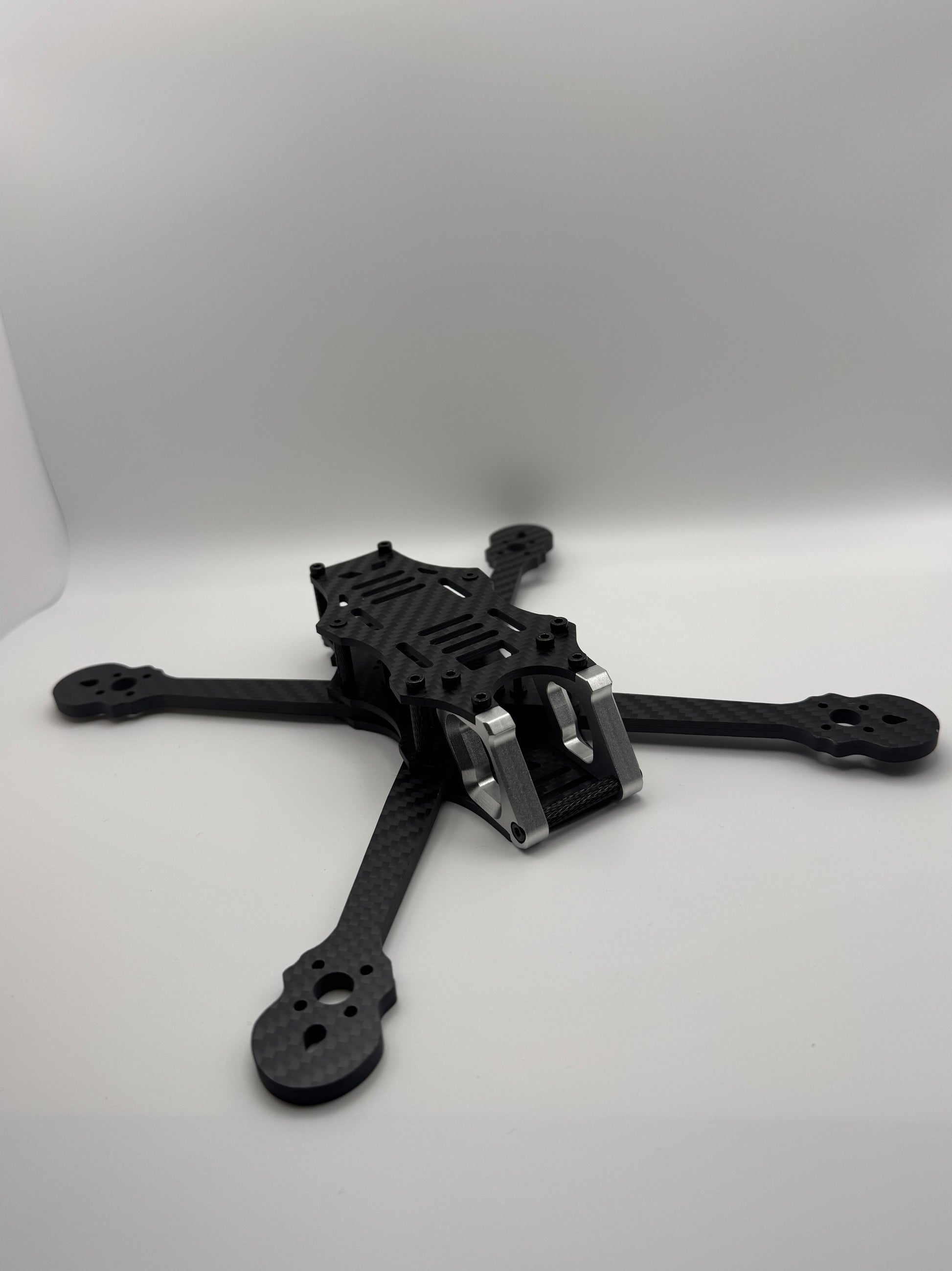

What's Included
- 4x arms
- hardware kit
- bottom plate
- mid plate (w/ pressnuts)
- top plate
- TPU camera mounts (O4 / Analog / HDZ all-in-one)
Recommended Build
Pair the El Cabron with these tried-and-tested components for maximum send.
- Battery 4S 1300mAh
- Motors 2450kv
- FC / ESC KISS ULTRA
- VTX Your choice
Frequently Asked Questions
How durable is the frame?
Built for hardcore bashing. 5mm arms, 3mm top/mid/bottom plates, chunky but more to love. The frame weighs ~170g and is designed to survive the kind of impacts proxy and sbang flying demand.
What stack and VTX sizes fit?
The frame accommodates 20x20mm and 30x30mm stack mounting, and 20x20mm or 25x25mm VTX mounting. The 20mm stack height gives plenty of room for your electronics.

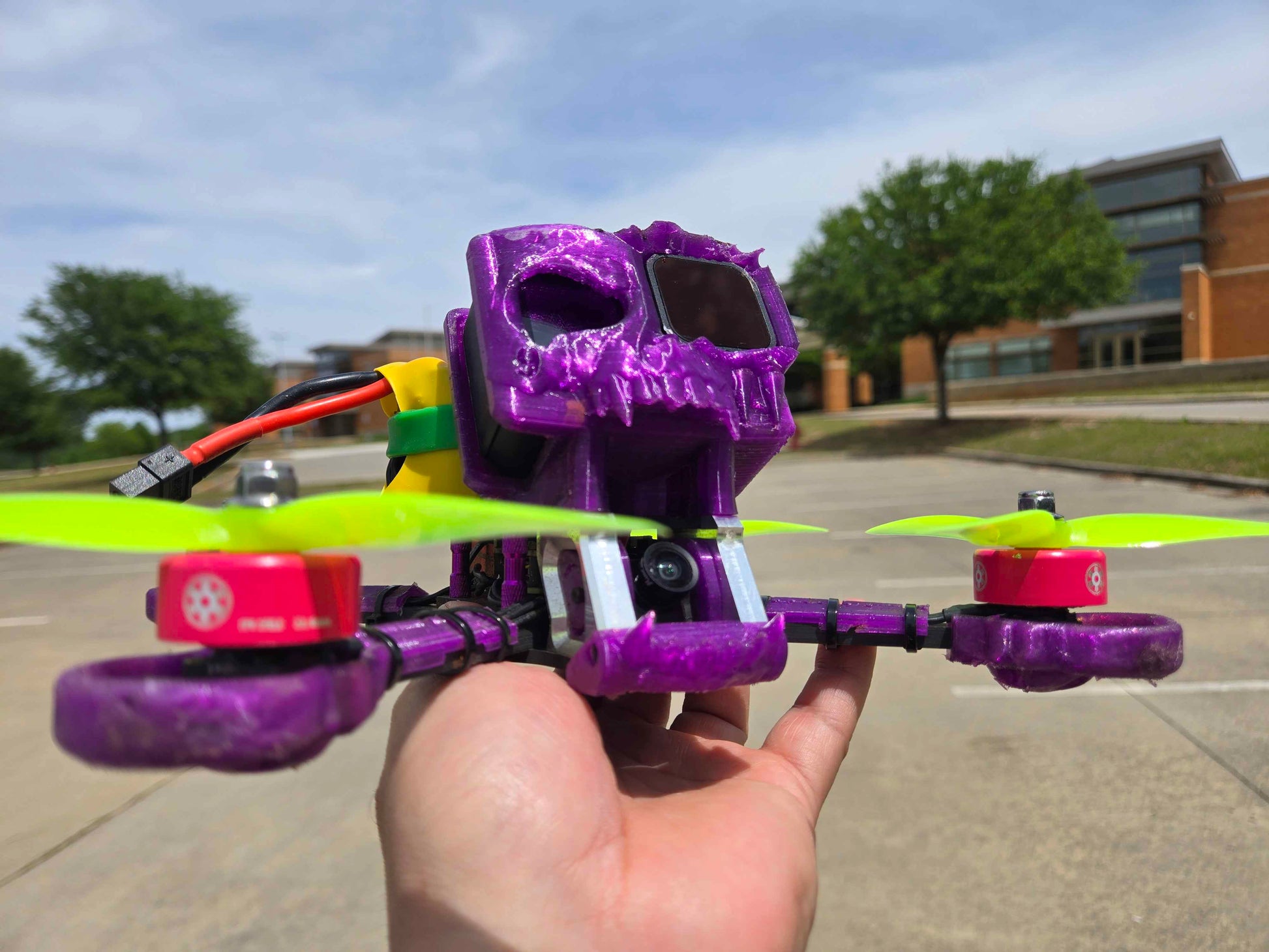

What camera systems are supported?
The included TPU camera mounts support DJI O4, analog, and HDZ camera systems — all in one mount set. No need to buy separate mounts when switching systems.
Is it compatible with KISS ULTRA and Betaflight?
Yes. The frame is Betaflight safe and KISS ULTRA recommended. It supports both 20x20mm and 30x30mm stack mounting patterns, so you can run whichever FC/ESC combo you prefer.
What prop size does it support?
The El Cabron supports up to 5.1" (129.54mm) props. It's designed and optimized for 5" propellers for freestyle, proxy, and sbang flying.
